Find regions of accessible chromatin

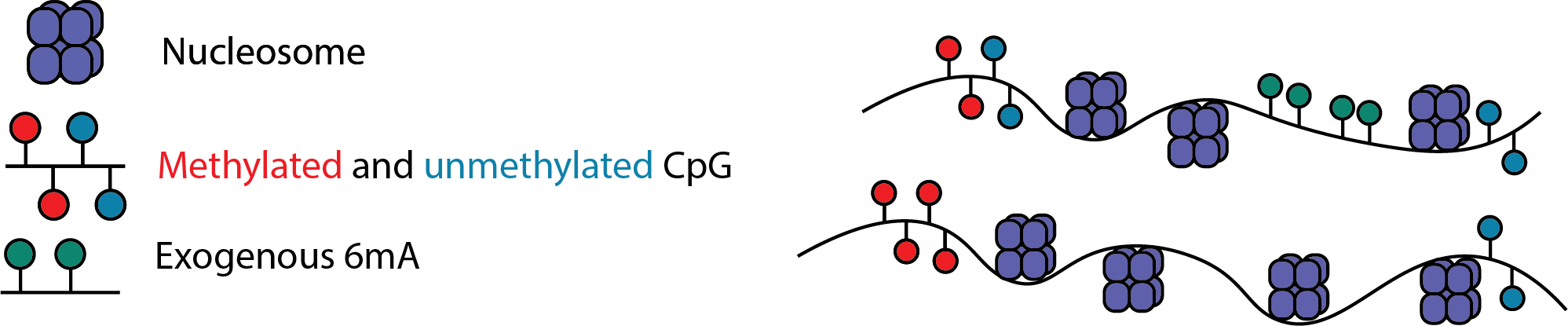

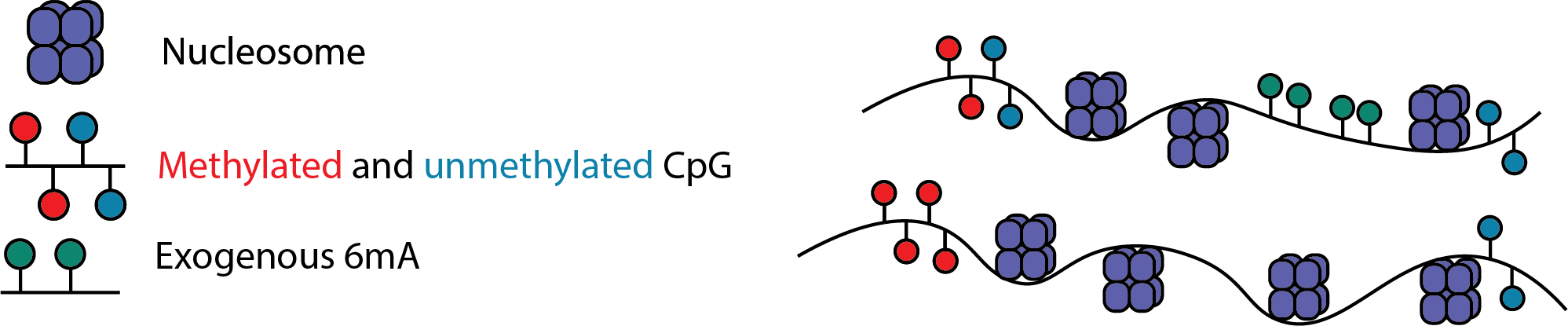

Nanopore sequencing can detect multiple base modifications simultaneously and we can leverage this capability by introducing exogenous base modifications at specific functional regions. One such method uses a 6mA methyltransferase such as EcoGII or Hia5 to label accessible regions of chromatinized DNA, usually by treatment of cell nuclei with the enzyme.

Predict regions of open chromatin

Modkit comes with a machine learning model that has been trained to identify regions of open chromatin based on 6mA signal. You can invoke this model with the following command:

$ modkit open-chromatin predict ${mod_bam} \
    --model ${model} \
    --log modkit_predict.log \
    -o ./accessible_regions.bedgraph \
    --device 0

Where ${model} is the path to the directory with the model, for example dist_modkit_v0.5.0_38fda16/models/r1041_e82_400bps_hac_v5.2.0@v0.1.0. The output of the command is a bedGraph file with the following schema:

Configuring --step-size

The open chromatin model in Modkit works by making predictions on 100 base pair windows of the genome. The output of the model is a prediction probability between 0.0 and 1.0, non-inclusive. To make predictions on the whole genome (or regions when the --include-bed option is provided) Modkit applies the model to overlapping windows. The --step-size determines how much to advance before making another prediction:

Genome    <--//------------------//->
Window 1       |---w----|
Window 2       |_s_|---w----|

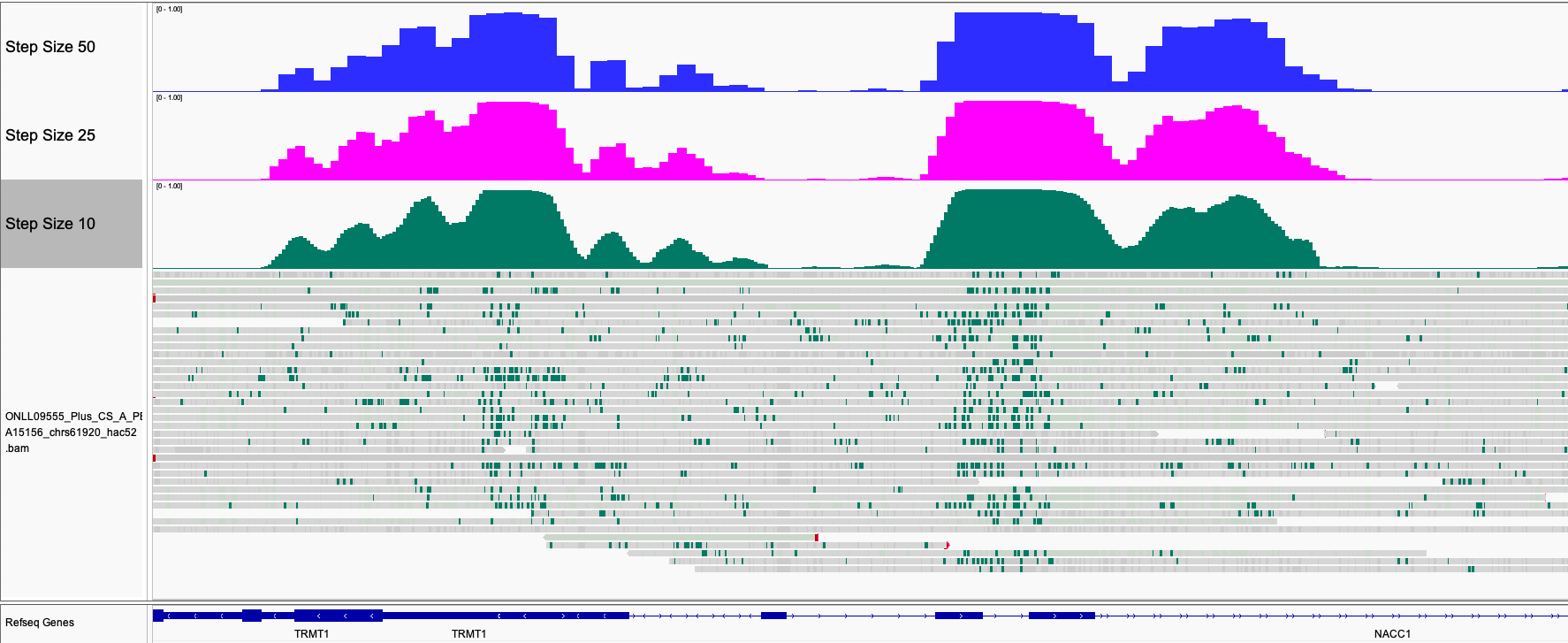

In the above w is the window size (100bp with the current model) and s is the step size which can be configured via the --step-size parameter. The smaller the step size, the finer-graned resolution the output at the cost of more computation. This can be seen in the following example browser image:

Step size of 25 base pairs is the default.

Using --threshold to get regions of high confidence

As seen above, the output from ope-chromatin predict is a stream of probabilities over the genome or desired region of the genome. A lot of these predictions are going to be very close to zero. You can remove low-probability regions with the --threshold option so that only intervals with a probability greater than or equal to this value are reported. Using this option in combination with bedtools merge can transform the bedGraph file into a BED of predicted open chromatin regions.

$ modkit open-chromatin predict ${bam} \
  --model ${model} \
  --threshold 0.8 \
  --include-bed promoters_slop2000.bed \
  -o stdout \
  | bedtools merge -i - > accessible_regions.bed

Running with a GPU

Modkit comes distributed with the capability to run open chromatin prediction on a normal CPU, NVIDIA GPUs, and can be built to run on Apple GPUs. The normal distribution only has the capability to run on CPU hardware. At the current stage of development this configuration is probably too slow for most practical purposes outside of small region checks. The candle distribution can be downloaded and used with NVIDIA GPUs directly, however we cannot guarantee that it will work on every GPU setup. For the best performance on GPU or CPU, the tch (pytorch) distribution is recommended, however it requires that you download libtorch from the internet. Instructions can be found in the BUILD_NOTES_*.txt packaged with the software.

Troubleshooting: Checking your input data

To predict regions of open chromatin, the input modBAM should have 6mA base modification calls. You can quickly check that you have valid 6mA calls using the check-tags command:

$ modkit modbam check-tags ${bam} --head 1000

This command will return non-zero when you have invalid MM/ML SAMTags. You should expect to see an output similar to this:

> checking tags on first 1000 reads
> no errors
> num PASS records: 1000 (100.00%)
> num records: 1000
> valid record tag headers:
+------------+-------+
| tag_header | count |
+------------+-------+
| A+a.       | 1000  |
+------------+-------+


> modified bases:
+--------+--------------+----------+------+
| strand | primary_base | mod_code | mode |
+--------+--------------+----------+------+
| +      | A            | a        | .    |
+--------+--------------+----------+------+
